Did a WWII nuclear experiment make the U of C radioactive?
In 1942 Enrico Fermi and a team of physicists at the University of Chicago built a nuclear reactor in a squash court under the South Side university’s football field. Their successful experiment was a key step toward the creation of the first atomic bomb and, eventually, nuclear power. Impressive, but numerous accounts say the primitive test reactor was constructed with little shielding to protect the outside world from radiation. The story led Mark Eifert, a Chicago native now living in Germany, to wonder:
The first ever self-sustained nuclear reaction was conducted under the University of Chicago’s Stagg Field. Is that site still radioactive?
Mark suggested we find someone with a Geiger counter to take a measurement, so we took him up on it.
But who has a Geiger counter? Meet James Marsicek, the radiation safety officer at the University of Chicago. And yes, Marsicek explained, every major university has a radiation safety officer, because “in a clinical setting, many faculty use radioactive material for either diagnostic or therapeutic procedures.”

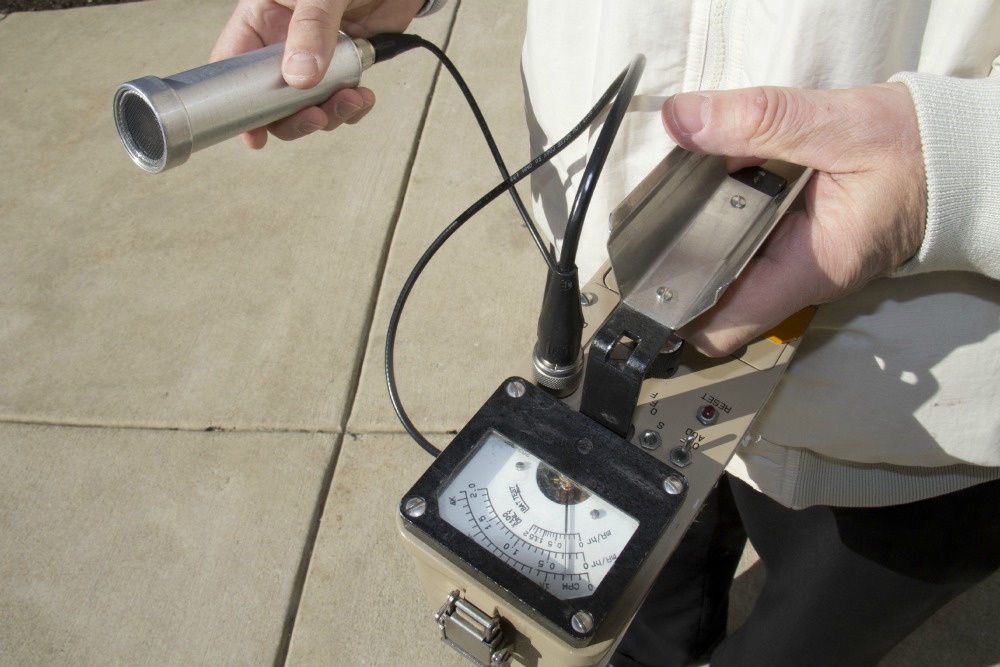

I joined Marsicek in the Administration Building, about a block away from where Stagg Field used to sit, and we took a control reading there. As Marsicek fired up his Geiger counter, he explained that “there’s radiation all around us, naturally occurring.” This “background radiation,” he said, will usually measure anywhere from about .02 to .03 millirems per hour on a Geiger counter, and indeed, when we looked at the Geiger counter’s needle, that’s where it landed.
From the Administration Building we walked about a block north, stopping near a bronze sculpture designed by Henry Moore that commemorates the first self-sustained nuclear reaction. This spot is close to what used to be Stagg Field, so Marsicek took another reading. The needle again registered .02, the equivalent of normal background radiation. We walked about fifty yards away in the direction of a library building and took another measurement. Same thing.
As we left the memorial and the site of the former reactor, we passed a student giving a tour. “Over here was where the first sustained nuclear reaction took place,” he explained. Before long, he added, “Don’t’ worry, it isn’t dangerous.” Apparently, Mark’s question is on others’ minds, too — seven decades after the experiment ran.
With the help of technology we can breathe a sigh of relief; there’s no undue danger in this corner of the campus, at least not from radiation. But, like I said, the nuclear reactor in question was primitive. So ... were the safety precautions from that time primitive, too? And, why would Fermi risk the chance of any nuclear mishap at a Chicago university in the first place?
The inner workings of Chicago Pile 1
For several weeks in the winter of 1942 Fermi’s scientists and laborers toiled in the unheated squash court underneath the University of Chicago’s abandoned football field, building what was named “Chicago Pile 1.” They called it a “pile” because that’s what it was: a pile of uranium pellets and graphite bricks, stacked ever-so-precisely. It was so cold most days that technicians and scientists could see their breath. They tried building fires in trash cans, but the room filled with smoke. The pile, which would eventually grow into a spherical shape, was built in meticulous layers, and the men (and one woman) worked in twelve-hour shifts, day and night. Directing the whole operation – his lab coat black with graphite dust – was a physicist named Enrico Fermi.
Top-secret research projects were started around the country, including the one at the University of Chicago led by physicist Arthur Compton. Fermi directed the experiment.
When Fermi began his work at the university, physicists had never witnessed a self-sustained chain reaction. They had crunched the numbers, of course, but no successful experiment had proved what the math had only suggested. Fermi, who had escaped from his native Italy with his Jewish wife, was known as a hands-on physicist — just the person for testing this theory in a real-world experiment.
Fermi’s pile was remarkable for its crude simplicity; it had neither mechanical parts nor wires. Instead, the pile consisted of alternating layers of uranium and graphite. Basically, it was just a stage to let the uranium do its thing: emit neutrons that would occasionally strike the nuclei of other uranium atoms, thus splitting off even more neutrons. The graphite served as a moderator, which would slow down the neutrons and make them more likely to strike additional uranium nuclei.
The team built the pile slowly; with each new layer Fermi would withdraw the cadmium rods and take a count of neutrons before placing the control rods back in the pile. As the workers and scientists milled more and more graphite, their faces grew black as coal miners’. Neighbors complained about the noise, not just from tools, but from the men singing to distract themselves from the monotonous work. The pile grew into a black igloo, 25 feet across at its equator and 20 feet tall from pole to pole. After 17 days of adding layers, Fermi knew the pile was big enough to reach criticality.
Couldn’t they do this in the woods?
Chicago Pile 1 was never meant to be under the University of Chicago’s former football field. Project managers originally wanted the full experiment to run in the Red Gate Woods, southwest of the city. But builders at Red Gate went on strike, so Compton and Fermi faced a decision: abandon the experiment, or move it. Fermi told Compton he felt confident that the pile could be built safely and effectively in the squash court under Stagg field.
“We did not see how a true nuclear explosion, such as that of an atomic bomb, could possibly occur,” Compton writes in his memoir. “But the amount of potentially radioactive material present in the pile would be enormous.”
The physicists I consulted about the 1942 experiment assured me that this was, in fact, a very low-risk experiment and that university physicists today routinely work with higher levels of radiation. This crude reactor could never have exploded like a bomb, which would require highly-enriched uranium. The worst-case scenario for the Chicago experiment? A primitive meltdown, with the pile catching fire and the uranium spewing more radiation.
On Dec. 2, 1942, Fermi ordered the last cadmium control rod removed from the pile, took a measurement, and declared the pile to be self-sustaining. And then, for a nerve-wracking 15 minutes, he let the reaction run its course while the neutron counters beeped out of control.
There are several accounts of this, one of the best being in Richard Rhodes’ The Making of the Atomic Bomb, which includes this eyewitness account from Herbert Anderson: “First you could hear the sound of the neutron counter, the clickety clack, clickety clack. Then the clicks came more and more rapidly and after a while they began to merge into a roar.”
Fermi and his team celebrated the achievement with muted enthusiasm. One of the scientists had brought a bottle of Chianti and they passed it around, drinking out of paper cups. According to Rhodes’ account, no one made a toast. No one said much of anything at all.
Eugene Wigner, another physicist on the project, recalls his realization of the far-reaching consequences of the event.
“Even though we had anticipated the success of the experiment, its accomplishment had a deep impact on us,” he wrote in an account detailed by Rhodes. “For some time we had known that we were about to unlock a giant; still, we could not escape an eerie feeling when we knew we had actually done it.”
The giant is buried
The following year Chicago Pile 1 was moved out to Red Gate woods, where it was intended to be in the first place. There, scientists reshaped it as a cube and renamed it Chicago Pile 2. When its physicist guardians felt they had learned all they could from the pile, they buried it in the woods. This burial site is on public land and even has a gravestone to befuddle unsuspecting hikers and other passersby. It reads:
The world's first nuclear reactor was rebuilt at this site in 1943 after initial operation at the University of Chicago. This reactor (CP-2) and the first heavy-water moderated reactor (CP-3) were major facilities around which developed the Argonne national laboratory. This site was released by the laboratory in 1956 and the US atomic energy commission then buried the reactors here.
The grave isn’t easy to find – Google Maps will lead you only to an unmarked trail-head and, after you arrive, you’ll find no sign saying “Nuclear reactor this way.” (This map below will help you on your adventure.) But if you're a little weak-kneed about visiting or you feel uncomfortable hitting up the stray jogger or hiker about the pile’s ultimate demise, you can find details and a museum-like tour at the nearby Argonne National Laboratory.
